Touching Screen Environmental Test Chambers Temperature Overshoot 2C

Name: Touching Screen Environmental Test Chambers Temperature Overshoot 2C
Brand: GSKA
Price: 1 USD

Touching Screen Environmental Test Chambers Temperature Overshoot 2C Manufactures

Brand Name : GSKA

Model Number : Environmental Test Chamber

Certification : CE SGS ROHS UL CE

Place of Origin : Dongguan China

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 100 Set / Sets per Month

Delivery Time : 10-60days after confirmed payment or by contract stipulation

Packaging Details : Export package

Observation window : Tempered glass

Cooling rate/min : 1 degree

Temperature fluctuation : ±1.0℃

Temperature uniformity : ±2.0℃

Customized support : OEM

Power : 220V , 50Hz

Condenser : Water-cooled condensing agent

Keyword : Environmental Chambers

Contact Now

Touching Screen Environmental Chambers Temperature Overshoot ≤±2℃

Test Chamber Applications:

1. To simulate test environment with different temperature and humidity

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

4. Uncover test unit weakness in a short-term test with accelerated time effect

Test Chamber Design Features:

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain

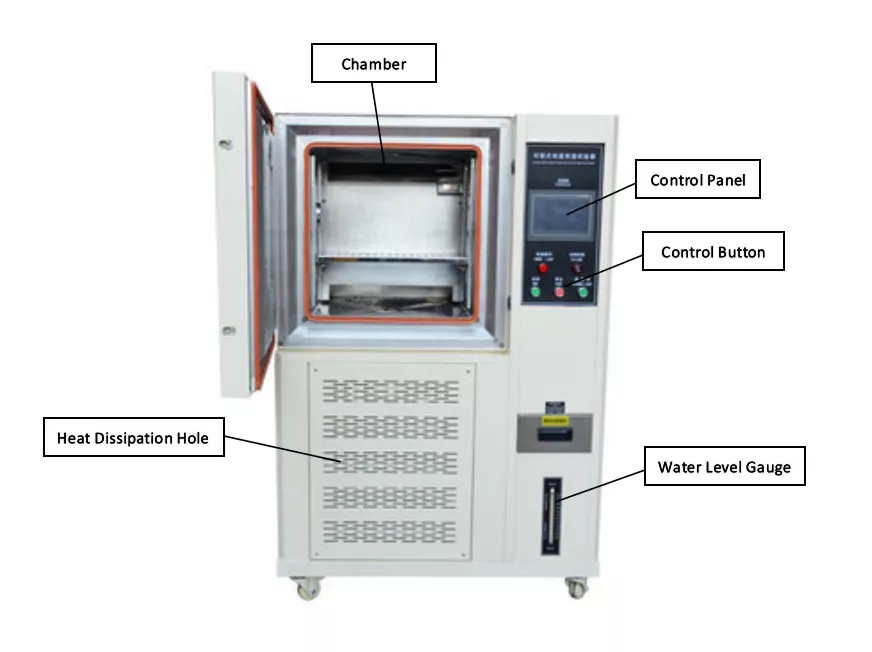

Box structure:

1. The box body is processed and formed by CNC machine tools, with beautiful appearance and non-reaction handle, which is easy to operate.

2. The inner tank of the box is made of imported high-grade stainless steel (SUS304) mirror panel, and the outer tank of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

3. The water replenishment tank is placed in the lower right part of the control box, and has automatic water shortage protection, which is more convenient for the operator to replenish the water source.

4. The large observation window is equipped with lights to keep the inside of the box bright, and the tempered glass embedded in the heating body is used to clearly observe the situation in the box at any time.

5. The humidification system pipeline is separated from the control circuit board, which can avoid failure due to water leakage in the humidification pipeline and improve safety.

The scientific name of high and low temperature environmental test box "high and low temperature test box" refers to a test box that simulates the natural environment. It mainly tests whether the product is resistant to high and low temperature. To test and determine the parameters and performance of electrical, electronic and other products and materials subjected to high temperature, low temperature, or constant temperature environment changes.

Performance parameters:

Temperature Range	A:-0~150℃ B:-20~150℃ C:-40~150℃ D:-70~150℃
Humidity Range	20%RH-98%RH (details see temperature humidity control diagram).
Temperature Fluctuation	±0.5℃
Humidity Fluctuation	±2%RH
Temperature Deviation	≤2.0℃
Humidity Deviation	A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH.
Temperature Uniformity	≤±2.0℃
Humidity Uniformity	+2,-3%RH
Heating Rate	Approx 3℃/mins,average non-linear ,no load
Cooling Rate	Approx 1℃/ mins,average non-linear ,no load
Temperature Overshoot	≤±2℃
Internal Material	1.2mm thick SUS#304 high &low temperature resistance stainless steel.
External Material	Adopt flame retardant high strength PU Polyurethane foam insulation material.
Control Method	Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning.
